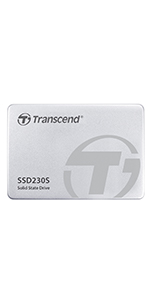

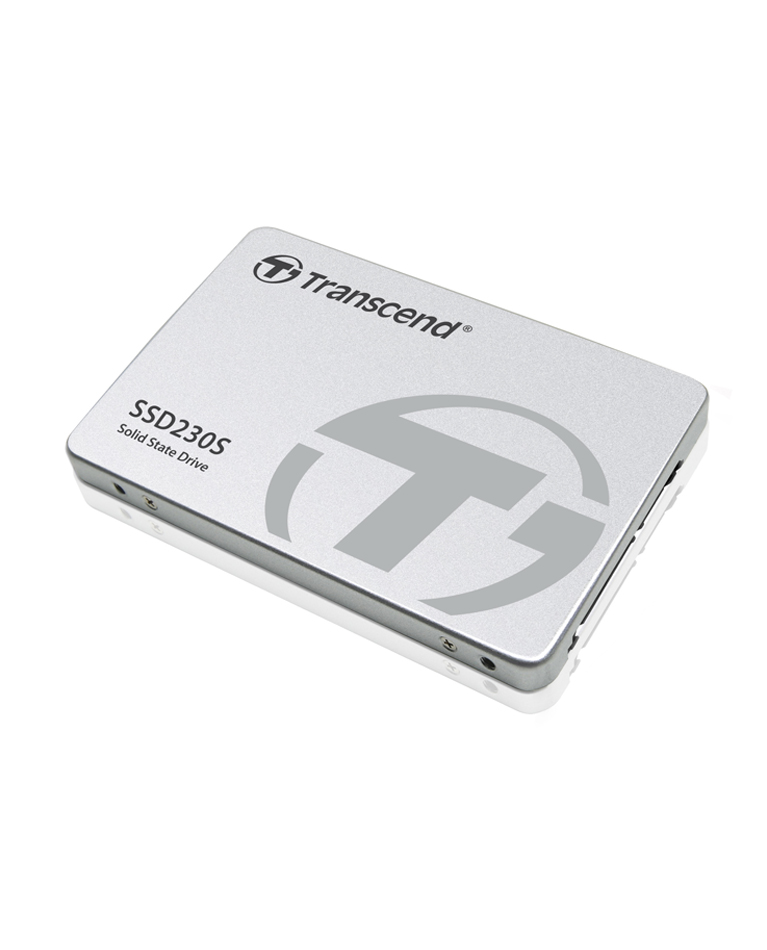

Transcend SSD 230S
- Up to 560 MB/s read; 520 MB/s write
- 3D NAND flash memory and DDR3 DRAM cache
- Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds
- Supports DevSleep ultra low power state, S.M.A.R.T., TRIM, and NCQ commands
- Download the SSD Scope software from Transcend’s official website
FEATURES
|

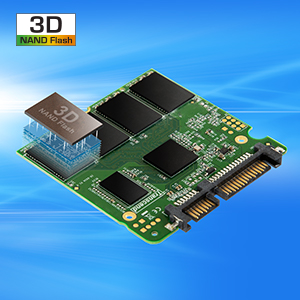

Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance. |
Taking full advantage of the SATA III 6Gb/s interface and built-in SLC caching technology, Transcend's SSD220S achieves exceptional transfer speeds of up to 540MB/s read and 500MB/s write. |
Transcend's SSD220S offers great Terabytes Written (TBW) values (up to 160 TB) indicating the total amount of data you can write into the drive over its lifetime. It also features RAID engine and LDPC coding, Garbage Collection, Wear-leveling, and DevSleep. |
|
Solid-state drives dominate the market for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operation, and are more shock-resistant than traditional hard drives. |
Transcend's SSD220S measures just 6.8mm in height and features short access times, making it a perfect choice for upgrading desktops, laptops, and the latest gaming consoles in just 3 easy steps! |
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive. |
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability. |
COMPARISON

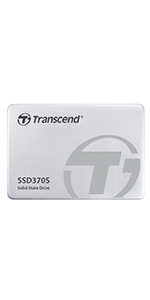

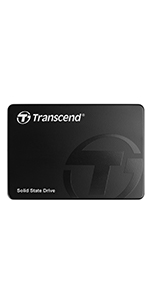

| SSD230S | SSD220S | SSD370S | SSD360S | SSD340K | |
 |
 |
 |
 |
 |
|
| Capacity | 128GB ~ 1TB | 120GB ~ 480GB | 32GB ~ 1TB | 32GB ~ 256GB | 32GB ~ 256GB |
| Interface | SATA III 6Gb/s | SATA III 6Gb/s | SATA III 6Gb/s | SATA III 6Gb/s | SATA III 6Gb/s |
| Form Factor | 2.5 inch | 2.5 inch | 2.5 inch | 2.5 inch | 2.5 inch |
| Flash Type | 3D NAND flash | 3D NAND flash | MLC NAND flash | MLC NAND flash | MLC NAND flash |
| Terabytes Written (Max.) | 560 TB | 160 TB | 408 TB | 230 TB | 282 TB |
| Max. Sequential Read/Write (ATTO) |
R 560MB/s, W 520MB/s |
R 540MB/s, W 500MB/s |
R 560MB/s, W 460MB/s |
R 560MB/s, W 500MB/s |
R 550MB/s, W 330MB/s |
| Max. 4K Random Read/Write (CrystalDiskMark) |
R 340MB/s, W 330MB/s |
R 200MB/s, W 280MB/s |
R 300MB/s, W 300MB/s |
R 180MB/s, W 330MB/s |
R 310MB/s, W 320MB/s |
| Max. 4K Random Read/Write (IOmeter) |
R 85,000 IOPS, W 85,000 IOPS |
R 50,000 IOPS, W 75,000 IOPS |
R 75,000 IOPS, W 75,000 IOPS |
R 60,000 IOPS, W 86,000 IOPS |
R 75,000 IOPS, W 80,000 IOPS |
| DDR3 DRAM Cache | • | - | • | - | • |
| Technology | TRIM & NCQ command, S.M.A.R.T., Advanced Garbage Collection, DevSleep mode, RAID engine, LDPC coding | TRIM & NCQ command, S.M.A.R.T., Advanced Garbage Collection, DevSleep mode, RAID engine, LDPC coding | TRIM & NCQ command, S.M.A.R.T., Advanced Garbage Collection, DevSleep mode, ECC | TRIM & NCQ command, S.M.A.R.T., Advanced Garbage Collection, DevSleep mode, ECC | TRIM & NCQ command, S.M.A.R.T., Advanced Garbage Collection, DevSleep mode, ECC |
